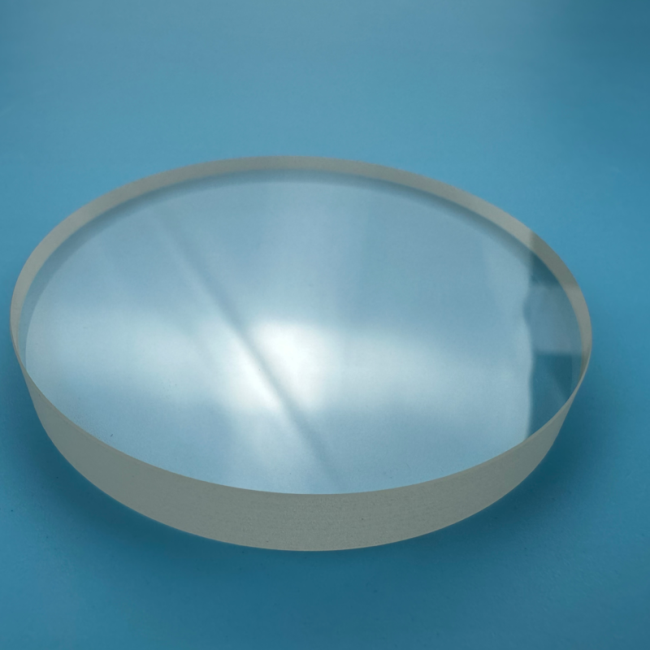

JGS1 optical quartz glass window
JGS1 optical quartz glass window is a high-performance optical element made of high-purity synthetic quartz glass
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement

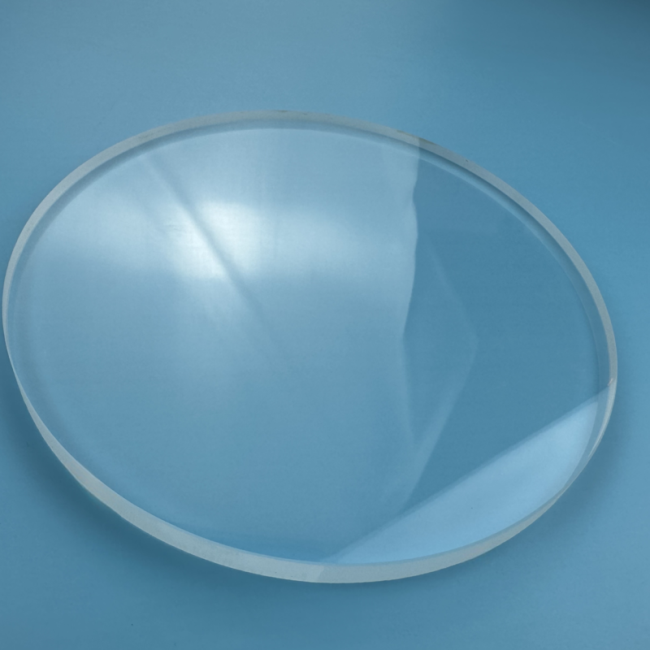

JGS1 optical quartz glass window
JGS1 optical quartz glass window is a high-performance optical element made of high-purity synthetic quartz glass (also known as fused silica). The main component of its material is silicon dioxide (SiO ₂), which is prepared through a special chemical vapor deposition process to ensure extremely high purity and optical uniformity. JGS1 specifically refers to quartz glass with excellent transmittance in the ultraviolet band, which is an indispensable key component in high-end optical systems.
Core features and solved problems:
Extremely high UV transmittance:
Solution: Ordinary optical glass (such as BK7) has strong absorption of ultraviolet light (especially deep ultraviolet light), resulting in severe energy attenuation of ultraviolet light sources.
Product advantages: JGS1 has a very high transmittance in the ultraviolet band (185nm-2500nm), especially after 185nm where the transmittance can reach over 85%. It can efficiently transmit ultraviolet light, ensuring the energy efficiency and signal strength of ultraviolet optical systems (such as ultraviolet spectrometers and ultraviolet laser processing).

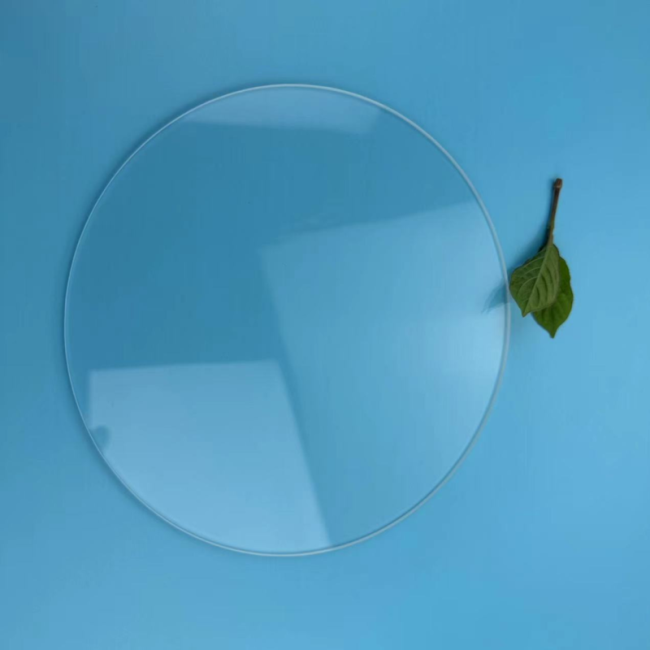

Excellent thermal stability:
Solution: Ordinary glass is prone to deformation and cracking under high temperature or thermal shock, which affects the stability and lifespan of optical systems.
Product advantage: JGS1 has an extremely low coefficient of thermal expansion and can withstand drastic temperature changes without cracking. Its softening point is as high as 1730 ℃, and it can work in high-temperature environments above 1000 ℃ for a long time, making it very suitable for applications such as high-temperature windows and vacuum chamber observation windows.
Excellent chemical stability:
Problem solving: Many optical materials are not resistant to acid and alkali corrosion and are easily damaged in harsh chemical environments.
Product advantages: JGS1 does not absorb moisture, is acid resistant (except for hydrofluoric acid and hot phosphoric acid), and can resist the corrosion of most chemicals, ensuring long-term stability and service life in corrosive environments.
High laser damage threshold:
Problem solved: High energy laser beams can cause thermal lensing and even breakdown of ordinary optical components.
Product advantages: JGS1 has a high laser damage threshold and can withstand direct irradiation from high-power ultraviolet laser and deep ultraviolet laser. It is an ideal choice for protective mirrors and output mirrors in ultraviolet laser optical systems.
Main application areas
With its unique performance combination, JGS1 optical quartz glass windows are widely used in the following high-tech fields:
1. UV optical system:
UV spectrometer: As a sample cell window and optical path window, it ensures lossless transmission of UV signals.
UV exposure machine: used as a mask substrate or optical system window to ensure lithography accuracy.
UV disinfection equipment: As a protective window, it allows high-intensity ultraviolet light to pass through to kill bacteria and viruses.
2. Laser technology:
UV/Deep UV Laser: Used as the output mirror, total reflection mirror, and cavity window of the laser resonant cavity.
High energy laser equipment: As a protective mirror and focusing mirror substrate in the laser optical path, it can withstand high power density.
3. Semiconductor and integrated circuit manufacturing:
Etching machine and CVD equipment: as observation windows for process chambers, they are resistant to plasma and high temperature environments.
Wafer inspection equipment: used in inspection instruments that require ultraviolet light sources.
4. Scientific research and analytical instruments:
Space observation: a UV detection system used for satellites and space telescopes.
High temperature experimental device: As an observation window for tube furnaces and muffle furnaces, it monitors the high-temperature reaction process in real time.
5. Medical and Biotechnology:
DNA analyzer and flow cytometer: use their UV transmittance characteristics for biomolecule detection.
Customized service
We are well aware that different application scenarios have unique requirements for optical components. Therefore, we provide comprehensive and flexible customization services to ensure that you receive JGS1 optical quartz glass windows that fully comply with design specifications.
Customization of size and shape:
We can provide window panels in circular, square, rectangular, and other irregular shapes.
The diameter/side length ranges from a few millimeters to several hundred millimeters, and the thickness can be customized according to mechanical strength and optical requirements.
Precision and surface customization:
Surface accuracy: It can provide different levels of flatness such as λ/10 and λ/4.
Surface smoothness: Depending on your needs, we offer surface quality grades ranging from 60/40 to 10/5.
Parallelism: Customizable high parallelism window, suitable for strict optical path systems.
Coating service:
Anti reflective film: It can be deposited at specific wavelengths (such as 193nm, 248nm, 355nm, or wideband) to significantly improve transmittance and reduce reflection loss.
Reflective film/spectral film: Customize different reflection/transmission ratios according to requirements.
Environmental resistant film: enhances the surface hardness and corrosion resistance of the window panel.
Chamfering and Drilling:
Provide protective chamfers to prevent edge cracking and facilitate installation.
Central or eccentric drilling can be carried out according to the drawing requirements.
JGS1 optical quartz glass window is not just a simple optical component, it is a bridge connecting light and precision systems, and a powerful tool for solving optical challenges in harsh environments such as ultraviolet, high-energy, and high temperature. No matter which high-tech field you are in, we can provide you with comprehensive solutions from standard products to deep customization, helping your project succeed.
Contact us immediately for exclusive technical consultation and customized solutions!
Luverre Quartz manufactures and sells a wide range of high quality fused quartz glass, including fused quartz tubes, fused quartz plates, fused quartz rods, fused quartz windows, fused quartz crucibles, fused quartz boats, fused quartz flanges, fused quartz beakers, fused quartz glass instruments, and more. We can meet all kinds of customized requirements for fused quartz glass products.
For more information, please feel free to contact us.
