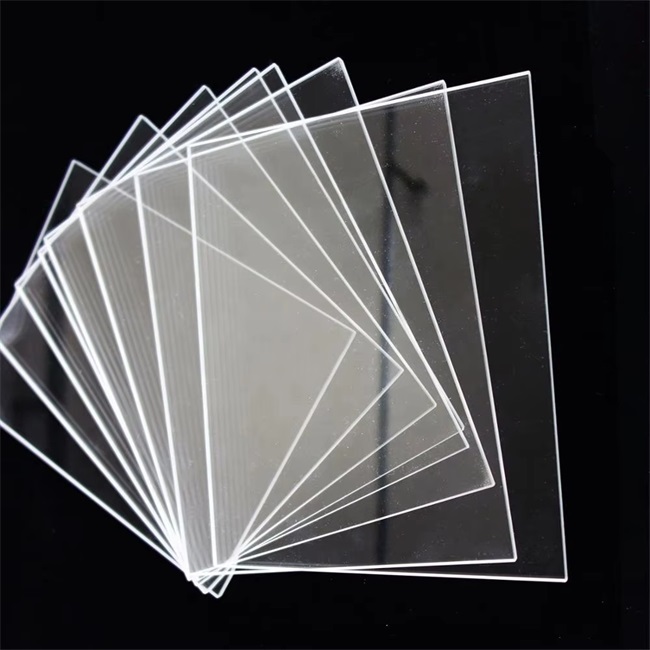

UV fused transparent quartz glass plate
UV fused transparent quartz glass plate is a high-quality material designed specifically for high-precision optical applications.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
UV fused transparent quartz glass plate is a high-quality material designed specifically for high-precision optical applications. It is made of high-purity silicon dioxide (SiO2) melted through precision technology, with excellent transparency, low thermal expansion coefficient, and excellent chemical stability. This quartz glass panel is particularly suitable for the ultraviolet (UV) region and can be customized in size, shape, and surface treatment according to the specific needs of customers to meet various complex application requirements.
Material characteristics
-High purity and amorphous structure: Using over 99.995% silica raw material, the purity and uniformity of the product are ensured, while avoiding the common problem of recrystallization in crystalline materials.
-Extremely low coefficient of linear thermal expansion: approximately 0.5 x 10 ^ -6/° C, maintaining stable physical dimensions over a wide temperature range, suitable for applications that require precise control of deformation.
-Excellent high temperature resistance: With a softening point of up to approximately 1713 ° C, it can maintain its structural integrity even under extreme temperature conditions.
-Excellent corrosion resistance: In addition to being sensitive to hydrofluoric acid, it is almost unaffected by other common chemicals, including strong acids, alkaline solutions, and organic solvents.
-Excellent optical performance: It has extremely high transmittance throughout the visible spectrum, especially in the ultraviolet region, providing over 80% transmittance, making it an ideal choice for high-end optical equipment such as lasers and spectrometers.
-Good mechanical strength: Although quartz glass itself is brittle and hard, it can still exhibit good toughness and impact resistance after special processing.
Customized options

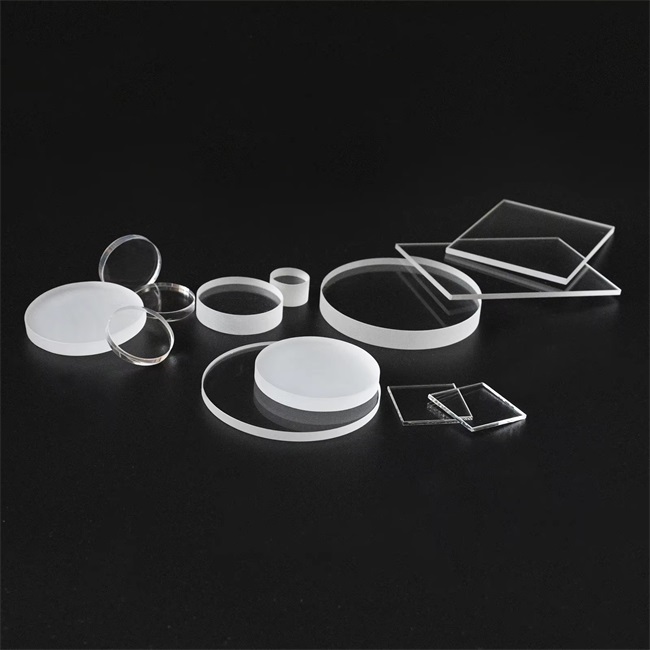

-Size and Shape: It can be cut into any size and geometric shape according to the customer's drawings or specifications, such as circles, squares, or other polygons.
-Thickness selection: Both thin and thick plates can be made, with a minimum thickness of 0.5 millimeters and a maximum thickness depending on the specific application scenario.
-Surface treatment: Provides various surface treatment methods such as polishing, sanding, coating, etc. to adapt to different usage environments and technical indicators.
-Edge processing: Supports various forms of edge trimming such as straight edges, chamfers, and rounded edges to ensure safety and aesthetics during installation.
-Holes and channels: can be drilled or slotted according to customer needs, facilitating assembly with other components.
Application area
UV fused transparent quartz glass panels are widely used in the following industries due to their unique properties:
-Semiconductor manufacturing: used as key components such as mask templates and reaction chamber windows to ensure cleanliness and accuracy during the manufacturing process.
-Optical instruments: As the basic materials for high-quality optical components such as lenses, filters, and mirrors, they enhance imaging quality.
-Scientific research: used to construct observation windows, sample racks, etc. in experimental devices to help scientists better observe and analyze.
-Medical health: For example, endoscopes, laser surgical instruments, and other aspects play an important role in providing patients with safer and more effective treatment methods.
-Aerospace: With its lightweight and high-strength characteristics, it has become an indispensable component of aircraft, satellites, and other spacecraft.
UV melted transparent quartz glass plate has become the preferred material in many high-tech fields due to its unparalleled advantages. If you are looking for a solution that can meet both high-performance requirements and personalized customization, then our products will be your best choice.

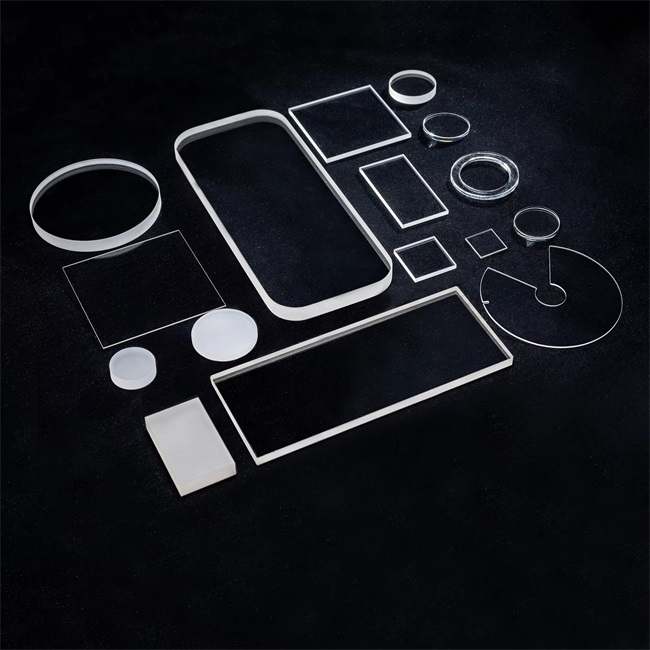

Luverre Quartz is a manufacturer focusing on producing various quartz plates, we can produce customized quartz plates in different sizes and shapes, such as square, round, oval and other special shaped designs according to customer's requirements. The processing includes cutting, bending, welding, etc., and there are different colors available, such as transparent quartz plates, opaque quartz plates, milky quartz plates and so on.
