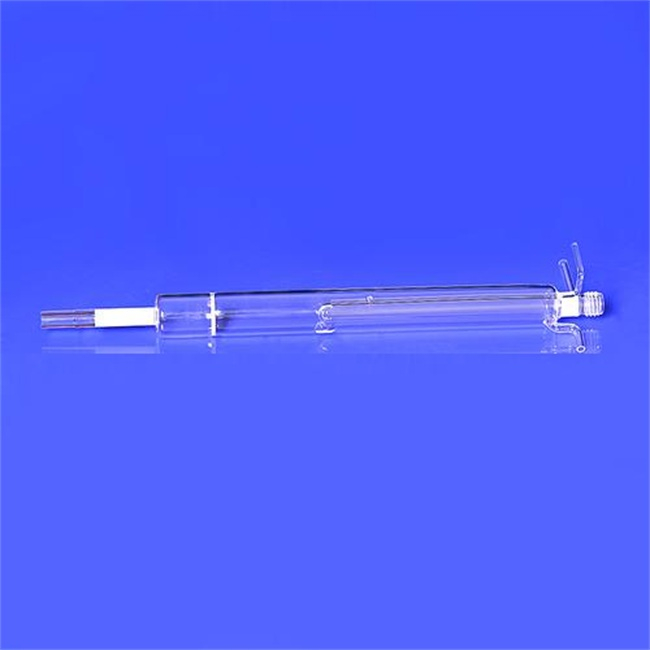

Supercritical water oxidation quartz reaction tube
The supercritical water oxidation quartz reaction tube is a core reaction vessel designed specifically for supercritical water oxidation (SCWO) technology.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
The supercritical water oxidation quartz reaction tube is a core reaction vessel designed specifically for supercritical water oxidation (SCWO) technology. It is made of high-purity synthetic quartz material and can maintain excellent chemical stability and mechanical properties in high temperature (above 374 ° C), high pressure (above 22.1MPa), and highly corrosive media environments. This product is developed specifically for industrial and scientific fields that require the treatment of high concentration organic wastewater, hazardous waste, and advanced material synthesis.
Core product advantages
1. Ultimate corrosion resistance performance
-Material purity: Made of high-purity synthetic quartz with a purity of over 99.99% and extremely high SiO ₂ content
-Chemical inertness: Almost not corroded in strong acids, strong bases, and oxidizing media
-Long term stability: The service life in supercritical water oxidation environment is 3-5 times longer than that of traditional alloy materials
2. Excellent thermal mechanical performance
-High temperature resistance: Long term use temperature can reach 500 ° C, short-term tolerance 550 ° C
-Thermal shock stability: Low thermal expansion coefficient (5.5 × 10 ⁻⁷/℃) ensures that it is not easily broken under rapid cooling and heating conditions
-High pressure tolerance: The designed working pressure can reach 30MPa, with a safety factor of up to 2.5
3. Precision manufacturing process
-Seamless molding technology: adopting advanced hot forming technology to ensure seamless and flawless joints
-Internal surface treatment: optical grade polishing to reduce scaling and particle adhesion
-Dimensional accuracy: diameter tolerance ± 0.1mm, straightness ≤ 0.1mm/m
4. Customized design capability
-Flexible size: inner diameter 10-300mm, length 100-3000mm can be customized according to needs
-Interface configuration: can integrate multiple flange, threaded interfaces, and sensor ports
-Special Features: Supports multi-layer structure, inner lining coating, and special geometric shape design
Main application areas
Wastewater Treatment and Environmental Protection
-Harmless treatment of high concentration organic wastewater (pharmaceutical, chemical, pesticide)
-Thorough decomposition of persistent organic pollutants (POPs)
-Safe disposal of hazardous chemicals and explosives
Energy and Resource Recycling
-Hydrogen production by supercritical water gasification of sludge and biomass
-Resource utilization of waste plastics and rubber
-Recovery and solidification of heavy metals from waste liquid
Research and high-end manufacturing
-New material synthesis (nanomaterials, ceramic precursors)
-Study on the Mechanism of Supercritical Water Oxidation Reaction
-Corrosion behavior testing of materials under extreme conditions
The key problems we can solve
1. Corrosion failure of traditional reactors
Metal reactors such as stainless steel and Hastelloy often fail in SCWO environments due to corrosion, resulting in:
-Frequent replacement of equipment increases operating costs
-Metal ion pollution reaction products
-Potential equipment failures and safety risks
Our quartz reaction tube fundamentally solves this problem, providing a lifespan several times longer than metal reactors.
2. Reaction efficiency and product purity
-No metal pollution: Ensure purity requirements for catalytic experiments and material synthesis
-Excellent heat transfer: The transparent properties of quartz facilitate optical monitoring of the reaction process
-Smooth surface: reduces side reactions and coking, improves target product yield
3. Difficulty in matching customized requirements
Standard reactors often cannot meet special experimental or process requirements. We offer:
-Quick response customized design (7-10 working sunrise images)
-Small batch trial production service (minimum order of 1 unit)
-Collaborate with customer R&D teams for development
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
Customer Application Cases
Case 1: European chemical giant upgrades wastewater treatment
Challenge: A multinational chemical company needs to treat high concentration organic wastewater containing chlorine. The original titanium alloy reactor experiences severe corrosion on average every 6 months, resulting in high replacement costs and production interruptions.
Solution: We have designed a customized quartz reaction tube with an inner diameter of 150mm and a length of 2000mm, integrating a thermocouple sleeve and sampling port.
achievements:
-Continuous operation for 18 months without any signs of corrosion
-The removal rate of toxic organic compounds has increased from 94% to 99.5%
-Reduce annual maintenance costs by 70%
-The project has been expanded to three production bases of the enterprise worldwide
Case 2: New Material Development by North American Research Institutions
Challenge: A national laboratory needs to synthesize high-purity nano metal oxides, requiring reaction vessels to be absolutely free of metal contamination and able to withstand rapid temperature changes.
Solution: Provide quartz reaction tubes with an inner diameter of 50mm, optical windows, and rapid cooling jackets.
achievements:
-Successfully synthesized targeting material with a purity of 99.999%
-The temperature change rate can reach 100 ° C/min without rupture
-The research results were published in the journal Science
-Purchased the second batch of 10 sets of reactors of different specifications
Case 3: Asian Environmental Protection Company Hazardous Waste Disposal Project
Challenge: Disposal of pharmaceutical waste liquid, which is complex in composition and contains fluoride, and has extremely strong corrosiveness to the reactor.
Solution: Multi layer structure quartz reaction tube, with special treatment on the inner surface to enhance its resistance to fluoride corrosion.
achievements:
-The service life of traditional reactors in fluorine-containing environments is 5 times longer
-300% increase in hazardous waste disposal capacity
-Obtained the Best Feasible Technology Certification from the local environmental protection department
-The project has become an industry demonstration project
Supercritical water oxidation technology has shown great potential in the treatment of difficult to degrade pollutants and resource recovery, and high-performance quartz reaction tubes are the key to its commercial application. With 20 years of professional experience, strict quality control, and flexible customization capabilities, we have become a leading quartz solution supplier in the global SCWO field.
Do you have specific requirements for supercritical water oxidation applications? Or would you like to know how quartz reaction tubes can optimize your existing process? Welcome to share your application scenarios and technical requirements. We will provide customized solution suggestions within 24 hours.
Luverre Quartz is a manufacturer specializing in quartz tubes and other quartz items.We have over 18 years experience with the production of quartz tubes, we will be your reliable partner on quartz tubes and other quartz items.
Luverre Quartz can manufacture customized quartz tubes in various shapes, such as spiral, square, round, with processing including cutting, bending, welding, etc., and available in different colors, such as transparent quartz tubes, opaque quartz tubes, milky white quartz tubes, red quartz tubes, and so on.
