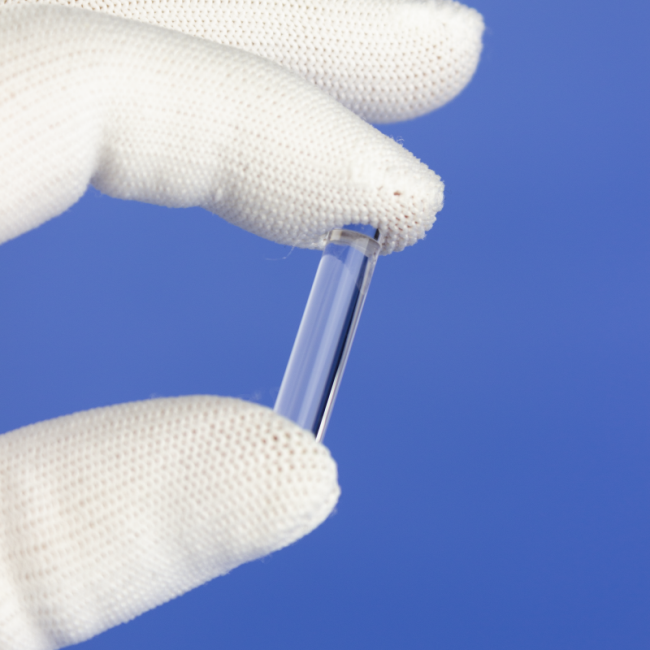

1-100mm cutting quartz rod
The 1-100mm cutting quartz rod is made of high-purity quartz material, with a purity of over 99.99%, and has excellent high temperature resistance, corrosion resistance, and good transparency.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
The 1-100mm cutting quartz rod is made of high-purity quartz material, with a purity of over 99.99%, and has excellent high temperature resistance, corrosion resistance, and good transparency. Accurate size and smooth surface, widely used in semiconductor, photovoltaic, optical instruments and laboratory equipment, meeting the precision application needs in high temperature and high cleanliness environments.
As a professional manufacturer of customized quartz products, we provide high-precision cutting quartz rod products to customers worldwide, with a diameter range covering 1mm to 100mm, meeting the stringent requirements of high-performance quartz materials in industries such as industry, research, optics, and semiconductors.
Product specifications and technical parameters
-Diameter range: 1– 100mm (supports non-standard customization)
-Length customization: Standard length of 10-500mm, can be cut according to requirements
-Material type: high-purity quartz (SiO ₂ ≥ 99.99%), optical grade quartz, ultraviolet grade quartz
-Tolerance control: Diameter tolerance ± 0.05mm (can be increased to ± 0.1mm according to requirements)
-Surface treatment: flame polishing, mechanical polishing, rough surface treatment, etc
-Thermal performance: Temperature resistance up to 1250 ℃, coefficient of thermal expansion as low as 5.5 × 10 ⁻⁷/℃
Core product advantages
1. Excellent material performance
We use high-purity quartz raw materials (SiO ₂ purity ≥ 99.99%) to ensure that our products have:
-Excellent thermal stability: low thermal expansion coefficient, high temperature resistance up to 1250 ℃
-Excellent optical performance: high transmittance (ultraviolet to infrared band), good optical uniformity
-Strong chemical inertness: resistant to acid and alkali corrosion (except hydrofluoric acid), suitable for harsh chemical environments
-Electrical insulation: high resistivity, high dielectric strength
2. Precision machining capability
-Cutting accuracy: using diamond wire cutting and laser cutting technology, with a cross-sectional flatness of<0.1mm
-Size control: Fully CNC machining equipment to ensure consistency of batch products
-Surface quality: can provide optical grade polishing, surface roughness Ra<0.01 μ m
3. Customized flexibility

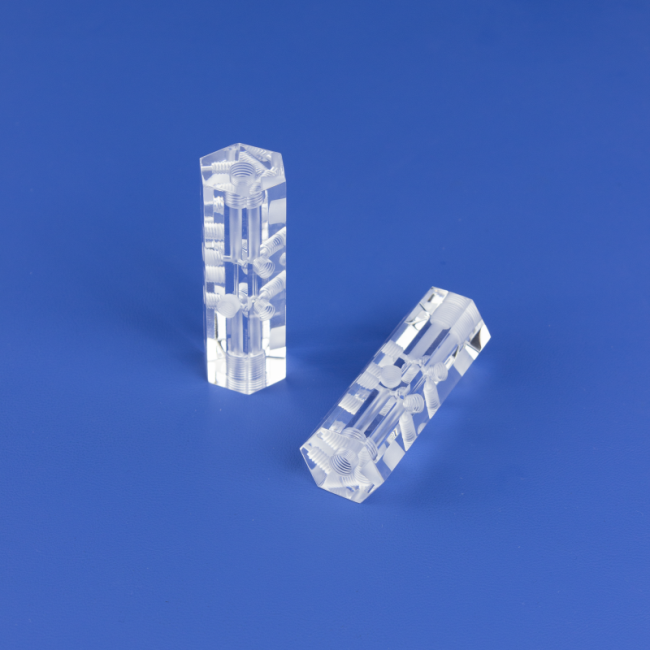

-Support customization of non-standard diameters, special lengths, and irregular cross-sections
-Material properties such as UV transmittance and thermal stability can be adjusted according to application requirements
-Provide secondary processing services such as chamfering, drilling, coating, etc
Main application areas
industrial manufacturing
-Semiconductor equipment: wafer carriers, etching machine components, CVD tubes
-Optoelectronic industry: fiber preform support materials, laser components
-High temperature equipment: observation window, insulation component, high temperature sensor sheath
Research and Laboratory
-Spectrometer sample holder
-High temperature reaction vessel
-Precision instrument optical components
Medical and special industries
-Medical equipment translucent components
-Analytical instrument flow cell
-Special lighting equipment
The key problems we can solve
1. Material failure problem in high temperature environment: Traditional glass or metal materials are prone to deformation or oxidation at high temperatures, while our quartz rod can work stably for a long time at 1250 ℃
2. Difficulty in meeting precision size requirements: It is difficult to find suppliers for small batches and multiple specifications of precision quartz parts. We provide customized small diameters starting from 1mm with precise tolerance control
3. Difficulties in material selection for chemical corrosion environments: The chemical inertness of quartz can withstand most acidic and alkaline environments (except hydrofluoric acid)
4. The contradiction between the dual requirements of optics and heat resistance: quartz is one of the few materials that can meet both high transparency and high temperature resistance in application scenarios
5. Slow supply chain response issue: Traditional quartz products have long delivery times. We have optimized the production process, with regular specifications taking 15-20 days and urgent orders taking 7-10 days to deliver
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
Customer Case
1. German semiconductor equipment manufacturer
Requirement: Quartz support rod for wafer etching equipment, with a diameter of 3.2mm ± 0.02mm and a length of 200mm, requiring high temperature resistance and resistance to fluorine based gas corrosion.
Solution: We provide UV grade quartz material with special surface treatment to enhance corrosion resistance. We mass produce 500 pieces and pass customer acceptance testing in one go, becoming their long-term supplier.
2. American research laboratory
Requirement: For observation window components used in high-temperature reaction devices, quartz rods need to be processed into specific irregular structures and require extremely high optical uniformity.
Solution: We use optical grade quartz raw materials and achieve complex shape processing through CNC precision machining and flame polishing. The light transmittance exceeds 99.5%, meeting the experimental requirements.
3. Japanese optoelectronic companies
Requirement: Precision quartz rods for fiber optic drawing equipment, with diameters ranging from 0.8-50mm and various specifications, available in small batches and varieties, with tight delivery times.
Solution: We will adjust the production line to prioritize processing and complete 300 products of 7 specifications within 15 days, with all dimensional tolerances controlled within ± 0.15mm.
Get your exclusive quartz solution
Do you have any special requirements or application challenges for quartz rods? Welcome to provide your technical parameters and application scenarios. Our engineers will provide you with customized solutions and quotations within 24 hours. Please contact us via website inquiry or direct email, attaching drawings or detailed requirements for priority evaluation.
Luverre Quartz manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more. We can meet all kinds of customized requirements for quartz glass products.
