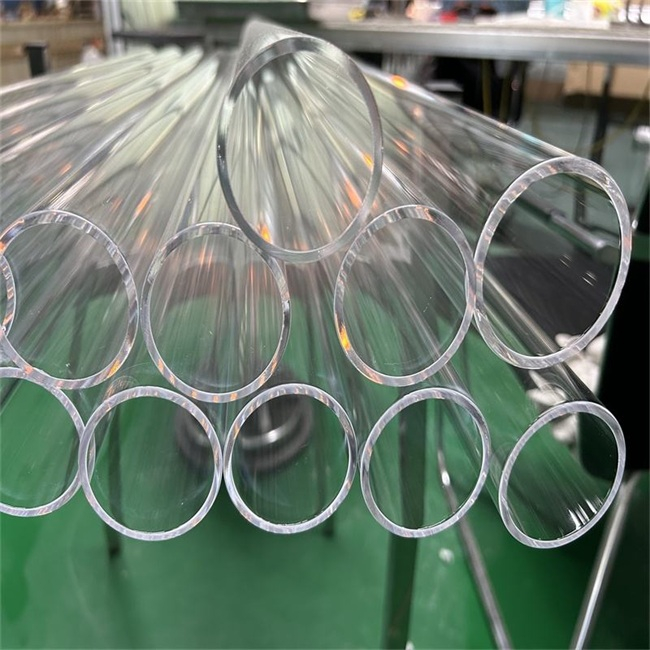

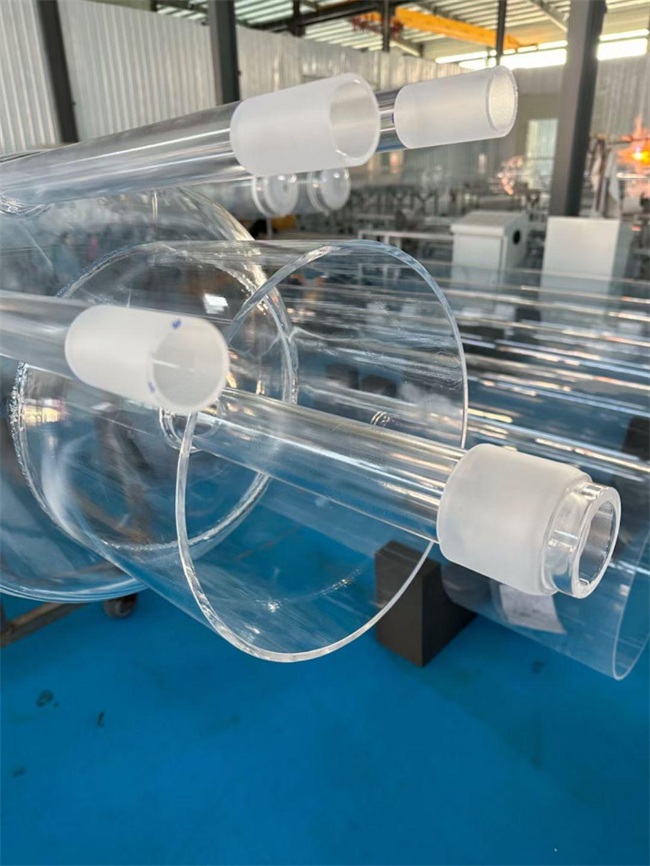

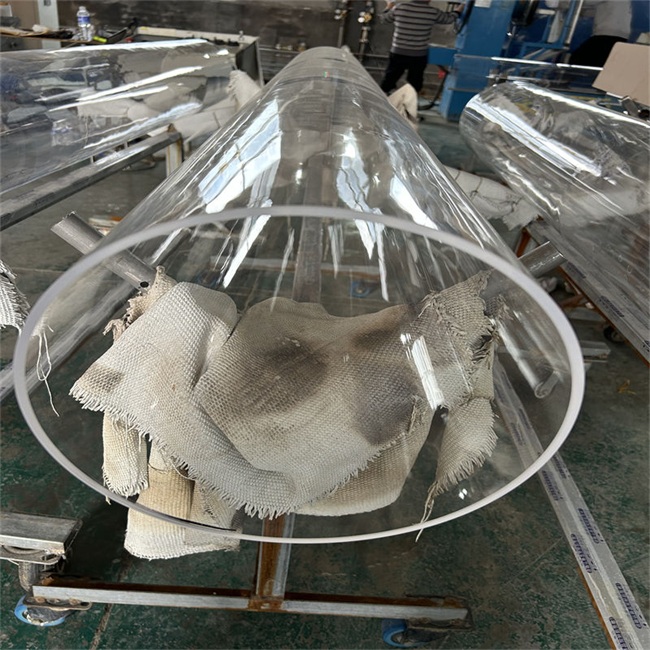

5-1500mm high temperature furnace quartz tube
5-1500mm high temperature furnace quartz tube, made of high-purity quartz material, with a temperature resistance of over 1200 ℃, complete size specifications
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
5-1500mm high temperature furnace quartz tube, made of high-purity quartz material, with a temperature resistance of over 1200 ℃, complete size specifications, suitable for high temperature experiments, material sintering and other fields, with characteristics such as corrosion resistance, good transparency, and strong thermal stability.
Our professional production of 5-1500mm high-temperature furnace quartz tube, made of high-purity fused silica material, has excellent high temperature resistance, thermal stability and chemical inertia. The diameter range of the product is from 5 millimeters to 1500 millimeters, and the length can be customized according to customer needs. It is suitable for various high-temperature processing, semiconductor manufacturing, laboratory research, and industrial heating fields.
Core product advantages
1. Excellent material performance
-High purity material: fused silica with purity of 99.99% or more is used, with extremely low impurity content
-Extreme temperature resistance: Continuous operating temperature up to 1100 ° C, short-term temperature resistance up to 1450 ° C
-Excellent thermal stability: extremely low coefficient of thermal expansion (5.5 × 10 ⁻⁷/° C), strong thermal shock resistance
-Chemical inertness: acid and corrosion resistant (except hydrofluoric acid and hot phosphoric acid), does not react with most chemicals
2. Precision manufacturing process
-Smooth and uniform inner and outer surfaces, reducing pollution adhesion
-High dimensional accuracy, with tolerances controlled within ± 0.5%
-Optional transparent, milky white or special coating treatment
-Can perform secondary processing such as cutting, grinding, polishing, opening, and sealing
3. Customization flexibility
-Diameter range: 5mm-1500mm
-Length customization: up to 3000mm in length
-Wall thickness selection: 1mm-20mm
-Special shapes: irregular pipes, conical pipes, flanged pipes, etc
Main application areas
Semiconductor and Photovoltaic Industry
-Diffusion furnace, CVD reaction chamber tube
-Crystal growth furnace tube
-Solar cell manufacturing equipment
Laboratories and research institutions
-High temperature tube furnace reaction tube
-Thermal analysis instrument components
-Chemical synthesis reaction vessel
Industrial Heating and Heat Treatment
-Industrial furnace observation window and protective tube
-Inner lining of heat treatment equipment
-High temperature conveying pipeline
Special industry applications
-Lighting industry: halogen lamps, ultraviolet lamps
-Optoelectronic industry: lasers, optical equipment components
-Medical equipment: observation window for high-temperature sterilizer
The key problems we can solve
1. Material failure problem in high temperature environment: Ordinary glass is prone to softening and deformation at high temperatures, while our quartz tube remains stable
2. Fracture caused by thermal cycling: The low thermal expansion coefficient ensures that it does not rupture under rapid temperature changes
-Pollution caused by chemical corrosion: high chemical purity ensures non polluting treatment materials
4. Design difficulties caused by size limitations: a wide range of sizes and customization capabilities meet the needs of special equipment
5. The problem of low thermal efficiency: Excellent transparency (transparent quartz tube) or uniform thermal radiation (milky white quartz tube) improves energy efficiency.
Customer Case (Anonymous)
Case 1: European semiconductor equipment manufacturer
Customer requirement: Precision quartz tube for a new type of diffusion furnace, with a diameter of 800mm and a length of 2000mm, requiring extremely high roundness and wall thickness uniformity, and a temperature resistance of 1300 ° C for continuous operation.
Solution: We use a special centrifugal molding process, combined with precision machining, to control roundness within 0.3mm and wall thickness deviation less than 0.5mm.
Result: The product performance fully meets the requirements, and the customer has been purchasing continuously for 3 years, with a cumulative order of over 200 units.
Case 2: American Materials Research Laboratory
Customer requirement: Customized quartz tube for high-temperature X-ray diffractometer, with one end closed and a special interface, while maintaining high transparency.
Solution: We have designed a fully formed closed end structure using high-purity transparent quartz material and precisely machined the interface part.
Result: The quartz tube has a transmittance of over 92% and has been successfully applied in the customer's high-temperature material structure research project.
Case Three: Japanese Photovoltaic Enterprises
Customer demand: Quartz tubes with a diameter of 600mm are required for the solar cell production line. They should have a uniform milky white color and stable thermal radiation performance. The monthly demand is 50 tubes.
Solution: We have optimized the milk whitening process to ensure consistent color and thermal performance, and established a dedicated production line to ensure stable supply.
Result: The efficiency of the customer's production line has increased by 8%, and the product qualification rate has increased to 99.6%. A long-term supply cooperation relationship has been established.
If you are looking for a solution for high-temperature furnace quartz tubes or have questions about specific applications, please feel free to contact us for free technical consultation and sample testing opportunities. Our engineering team is always ready to provide you with professional advice and customized solutions.
Luverre Quartz manufactures and sells a wide range of high quality fused quartz glass, including fused quartz tubes, fused quartz plates, fused quartz rods, fused quartz windows, fused quartz crucibles, fused quartz boats, fused quartz flanges, fused quartz beakers, fused quartz glass instruments, and more. We can meet all kinds of customized requirements for fused quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
