OD 3-300mm large diameter quartz tube
OD 3-300mm large-diameter quartz tube is made of high-purity fused silica material and is specially designed for industry, scientific research and high-end technology fields.
LUVERRE quartz
99.99%

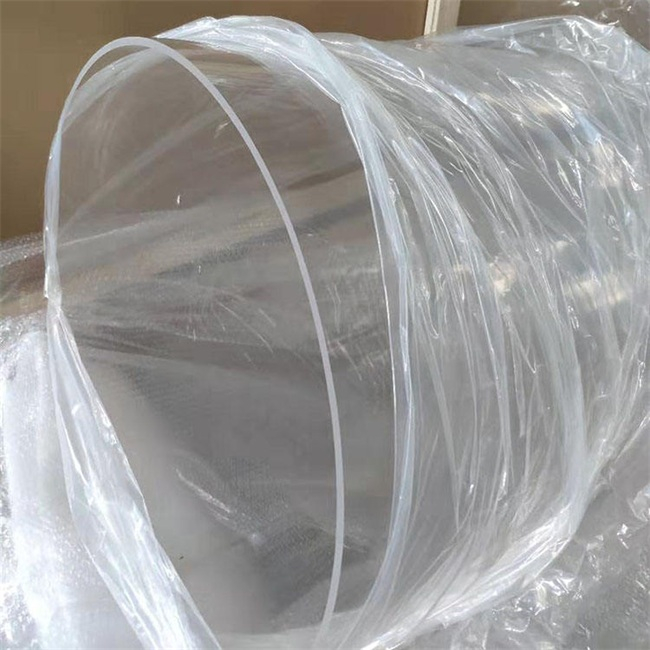

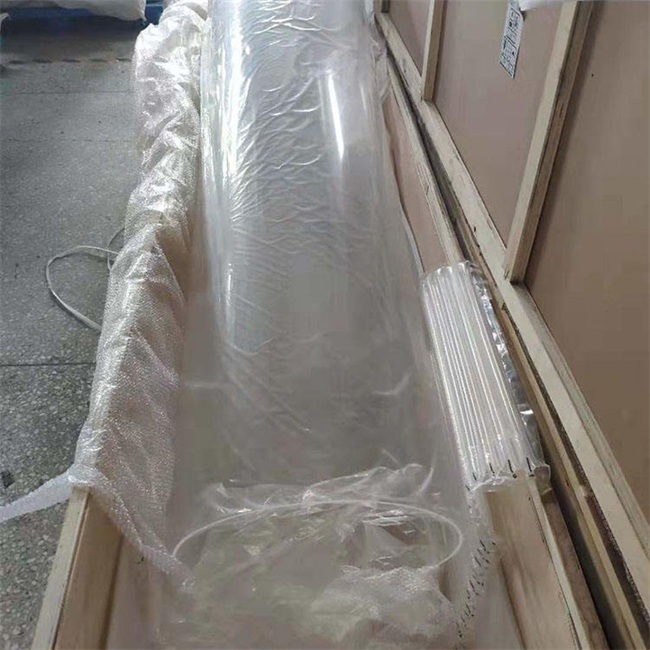

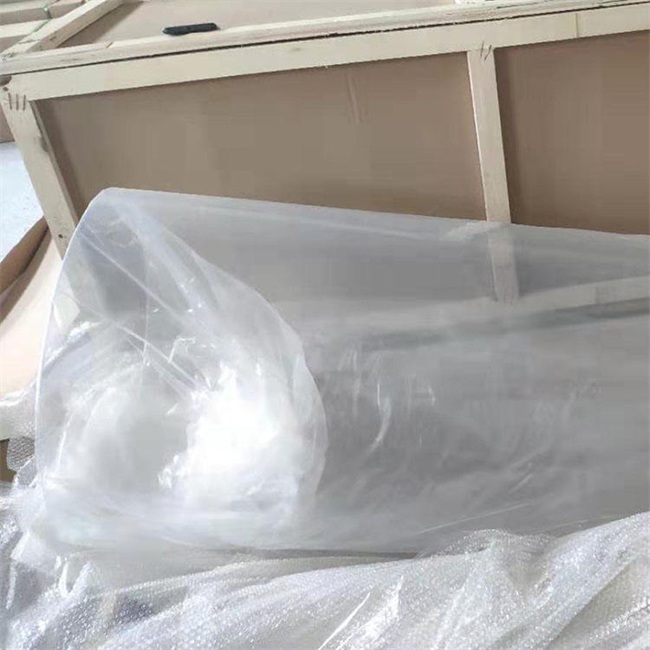

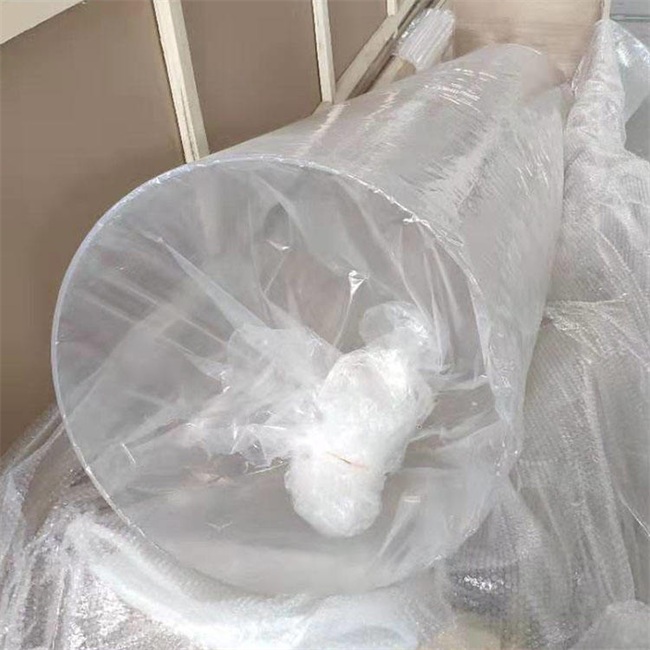

Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
OD 3-300mm large-diameter quartz tube is made of high-purity fused silica material and is specially designed for industry, scientific research and high-end technology fields. We provide full-size customization services to meet the personalized needs of global customers for quartz tube diameter, wall thickness, length, and surface treatment. The product is an ideal choice for high temperature, corrosive, and precision environments due to its excellent thermal stability, optical performance, and chemical inertness.
Core strengths
1. Ultra high purity materials
Using high-purity quartz sand with SiO ₂ content ≥ 99.99%, ensuring low bubbles and impurities, suitable for high demand fields such as semiconductors and photovoltaics.
2. Excellent thermal performance
-High temperature resistance: Long term use temperature up to 1100 ℃, short-term tolerance 1450 ℃
-Low thermal expansion coefficient: 5.5 × 10 ⁻⁷/℃, superior thermal shock resistance
-Good thermal stability, no crystallization phenomenon
3. Precision machining capability
-The diameter tolerance can be controlled within ± 0.1mm
-Wall thickness uniformity of over 95%
-Provide secondary processing such as flame polishing, sanding, cutting, sealing, etc
4. Customization flexibility
-OD 3-300mm full-size coverage, wall thickness 0.5-20mm optional
-Support non-standard sizes, irregular structures, and special coating treatments
-Flexible minimum order quantity, supporting small batch trial orders
Product Specifications
Outer diameter (OD): 3mm -300mm (supports non-standard sizes)
Wall thickness: 0.5mm-20mm
Length: 10mm -3000mm (can be extended)
Surface treatment: transparent, frosted, frosted, coated
End treatment: cutting, flame polishing, flange connection, sealing
Purity level: Industrial grade (99.95%), Optical grade (99.99%)
Application field
1. Semiconductor manufacturing
-Diffusion furnace, oxidation furnace tube
-Wafer carrier, process pipeline
-Protective cover for optical components of lithography machine
2. Photovoltaic industry
-Large diameter quartz crucible for polycrystalline silicon ingot furnace
-Conveyor pipe for photovoltaic glass coating production line
-Solar cell heat treatment tube
3. Lighting industry
-High end halogen lamps, mercury lamps, xenon lamp tubes
-UV transmission tube for UV curing equipment
-Special lighting equipment casing
4. Laboratory and Research
-High temperature reactor, observation window
-Spectrometer sample room, optical components
-Customized experimental setup
5. Industrial equipment
-Observation window for thermal processor
-Chemical anti-corrosion pipeline lining
-Laser equipment protective sleeve
The problems we can solve
1. Material failure under high temperature environment
Replace ordinary glass and ceramics to solve problems of high-temperature deformation and cracking.
2. Corrosion caused by corrosive media
Maintain stability in acidic, alkaline, and high-purity chemical environments and reduce equipment maintenance frequency.
3. Risk of precision process pollution
High purity materials avoid the introduction of impurities and ensure the yield of semiconductor and photovoltaic products.
4. Difficulty in matching customized requirements
One stop solution for non-standard sizes, special processing, and small batch procurement needs.
5. Unstable supply chain
We have our own factory for production and 15 years of experience in foreign trade to ensure consistent delivery time and quality.
Application case (anonymization)
European semiconductor equipment manufacturer
Requirement: A Φ 250mm quartz tube for wafer heat treatment furnaces, with a temperature resistance of 1400 ℃ and a monthly deformation rate of less than 0.05%
Solution: Customize quartz tubes doped with titanium elements to enhance their resistance to crystallization
Result: The customer's production line has been running continuously for 18 months without replacement, and the yield rate has increased by 2.3%
North American Photovoltaic Research Institute
Requirement: A Φ 80mm quartz tube is used for the coating chamber of perovskite cells, and precise drilling of the inner wall is required for sensor integration
Solution: Laser drilling+inner wall chemical polishing to ensure airtightness and flow field uniformity
Result: Experimental data repeatability increased by 34%, resulting in a long-term framework agreement with the client
Asian Optical Enterprises
Requirement: A 150mm non spherical quartz lens embryo tube with a light transmittance greater than 93% and no internal stripes is required
Solution: Adopting electric melting method for secondary melting process, combined with fully automatic detection to remove defective products
Result: Lens imaging distortion was reduced to 0.01%, and the delivery qualification rate reached 99.6%
OD 3-300mm large-diameter quartz tube, as an industrial key material, directly affects the quality and production efficiency of the final product due to its performance. We rely on our professional manufacturing capabilities, strict quality control, and rich customization experience to provide customers with reliable quartz product solutions.
Do you need to customize quartz tubes? Welcome to submit your technical requirements drawings or application scenario descriptions. Our engineers will provide customized solutions and quotations within 24 hours.
Luverre Quartz manufactures and sells a wide range of high quality fused quartz glass, including fused quartz tubes, fused quartz plates, fused quartz rods, fused quartz windows, fused quartz crucibles, fused quartz boats, fused quartz flanges, fused quartz beakers, fused quartz glass instruments, and more. We can meet all kinds of customized requirements for fused quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 19 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
