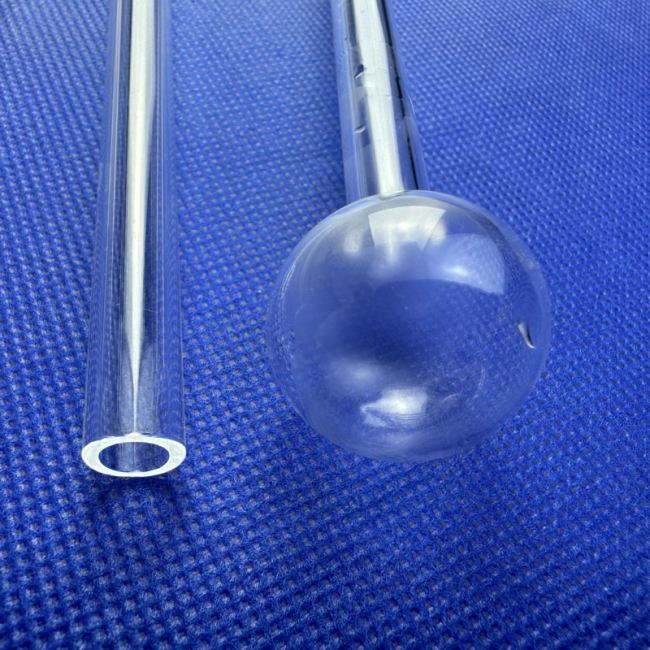

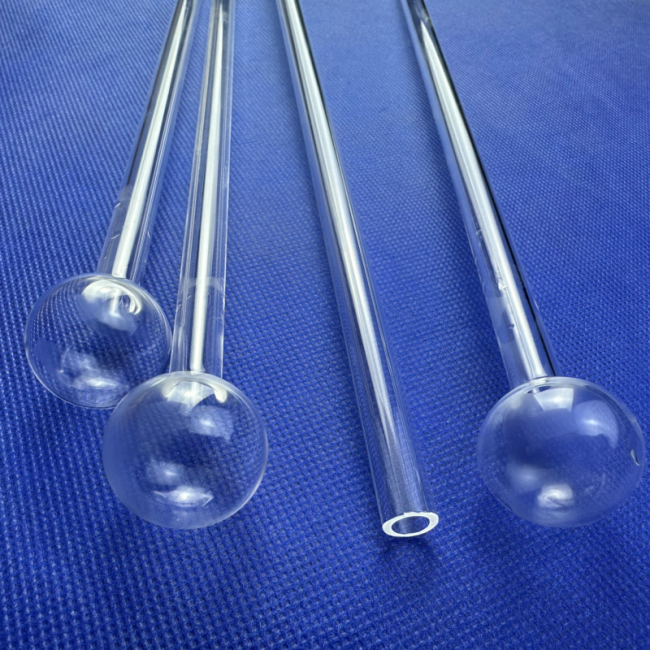

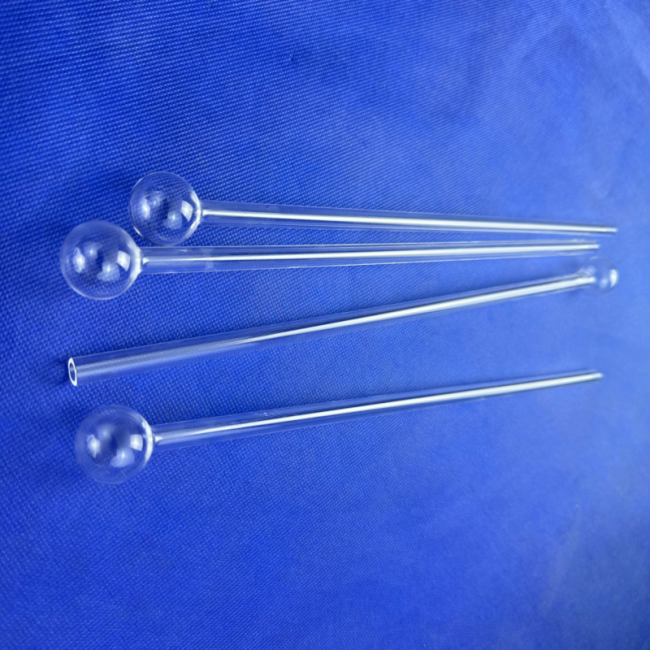

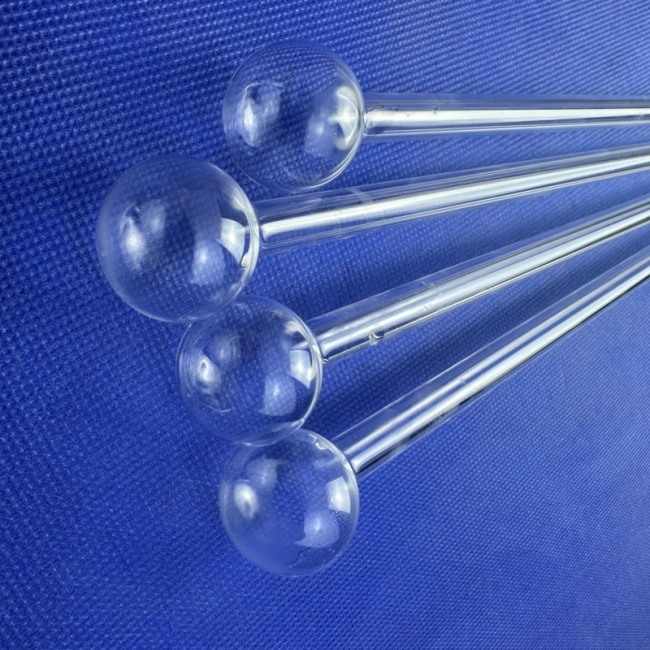

Laboratory quartz ball tube
Laboratory quartz ball tubes are spherical connecting pipe fittings made of high-purity fused quartz, specially designed for high-end laboratory environments.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Laboratory quartz ball tubes are spherical connecting pipe fittings made of high-purity fused quartz, specially designed for high-end laboratory environments. This product is made of quartz material with a purity of over 99.99% and formed through high-temperature welding technology. It features excellent chemical stability, thermal stability and optical transparency, and is a key component for connecting, converting or expanding laboratory quartz systems.
Core product advantages
1. Material advantages
- Ultra-high purity: Utilizing fused quartz with a SiO₂ content of 99.99%, the content of heavy metal impurities is less than 1ppm
- Excellent thermal performance: The coefficient of thermal expansion is extremely low (5.5×10⁻⁷/℃), capable of withstanding long-term use at 1200℃ and instantaneous high temperatures of 1450℃
- Chemical inertness: Resistant to the corrosion of the vast majority of acids, alkalis and organic solvents except for hydrofluoric acid and hot phosphoric acid
2. Manufacturing process advantages
- Seamless welding technology: The sphere and the tube body are welded by seamless high-temperature welding to ensure that the strength of the connection is consistent with that of the tube body
- Precision forming control: Spherical roundness error ≤0.5%, wall thickness uniformity deviation ≤±0.1mm
- Surface treatment: Various surface treatments such as flame polishing, pickling or mechanical polishing can be provided according to requirements
3. Performance parameters
- Operating temperature range: -100℃ to 1200℃
- Vacuum degree: up to 10⁻⁸ Pa
- Pressure resistance: The standard type can withstand an internal and external pressure difference of 0.1MPa
- Light transmittance: The light transmittance in the ultraviolet to infrared band (170nm-3500nm) is over 92%
Main application fields
1. Analytical instrument connection system
- Mass spectrometer injection system conversion connection
Interface between gas chromatograph and auxiliary equipment
- Spectral analysis sample cell connection components
2. Semiconductor manufacturing equipment
Gas conveying system for wafer processing equipment
Chemical vapor deposition (CVD) device connectors
Auxiliary pipeline system for photolithography machines
3. Research on high-end materials
Observation window and connecting components of single crystal growth equipment
Sight glass and interface of high-temperature reaction vessel
Special glass research experimental device
4. Pharmaceuticals and Biotechnology
High-purity pharmaceutical production equipment connection parts
- Sampling and observation interface for bioreactors
Fluid transfer in a sterile environment
The key problems we can solve
1. System reliability issues
Challenge: Ordinary glass connectors are prone to cracking during thermal cycling, which can lead to experimental interruption or equipment damage
Our solution: The thermal stability of quartz tubes ensures their integrity under rapid temperature changes, reducing the system failure rate
2. Pollution risk issues
- Challenge: Traditional materials may precipitate impurities that contaminate high-purity samples or reactants
Our solution: High-purity quartz material ensures zero pollution and is particularly suitable for trace analysis and semiconductor processes
3. Customized demand matching issues
- Challenge: The standard size cannot adapt to the design of special experimental devices
Our solution: We offer comprehensive customization services, ranging from size and shape to functional integration
4. Long-term usage cost issue
- Challenge: Frequent replacement of cheap components leads to an increase in total cost of ownership
Our solution: Outstanding durability significantly reduces replacement frequency and maintenance costs
Our customized service
1. Customized size and shape
- Ball diameter range: 10mm-300mm
- Connecting pipe diameter: 3mm-100mm
- Angle configuration: Multi-interface configuration at any Angle
2. Customized function integration
- Built-in temperature sensor interface
- Integrated sampling/injection port
- Special surface treatment (hydrophilic, hydrophobic, anti-fog)
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
Customer Case (Anonymous)
Case One: Top research institutions in Europe
- Requirement: A high vacuum spherical connection system for synchrotron radiation experiments, which needs to withstand a vacuum of 10⁻⁸ Pa and frequent thermal cycling
Solution: Customized double-layer structure quartz ball tubes with integrated metal transition flanges
- Achievements: The system has been operating continuously for 18 months without any faults, the vacuum degree has remained stable, and the success rate of experiments has increased by 30%
Case Two: A North American semiconductor equipment manufacturer
- Requirement: Multi-port quartz tubes for CVD equipment, demanding ultra-high purity and precise port positioning
- Solution: Develop five-port custom tubes and provide purity certificates and SEMI compliance documents
- Achievements: Helped the customer's equipment obtain key customer certification, and the annual purchase volume has continued to grow for three years
Case Three: Asian Pharmaceutical Enterprises
- Requirement: Transparent connectors for aseptic drug production lines, which must meet the FDA clean validation requirements
Solution: Provide quartz tubes with special surface treatment and verification support document packages
- Outcome: The customer successfully passed the FDA audit, and the product has been applied to multiple commercial production lines
Looking for a reliable quartz connection solution for your laboratory system?
Our team of engineers is always ready to provide you with technical consultation and customized solution design. Please tell us your specific requirements and we will recommend the most suitable laboratory quartz tube configuration for you.
Luverre Quartz is a manufacturer specializing in quartz tubes and other quartz items.We have over 18 years experience with the production of quartz tubes, we will be your reliable partner on quartz tubes and other quartz items.
Luverre Quartz can manufacture customized quartz tubes in various shapes, such as spiral, square, round, with processing including cutting, bending, welding, etc., and available in different colors, such as transparent quartz tubes, opaque quartz tubes, milky white quartz tubes, red quartz tubes, and so on.
